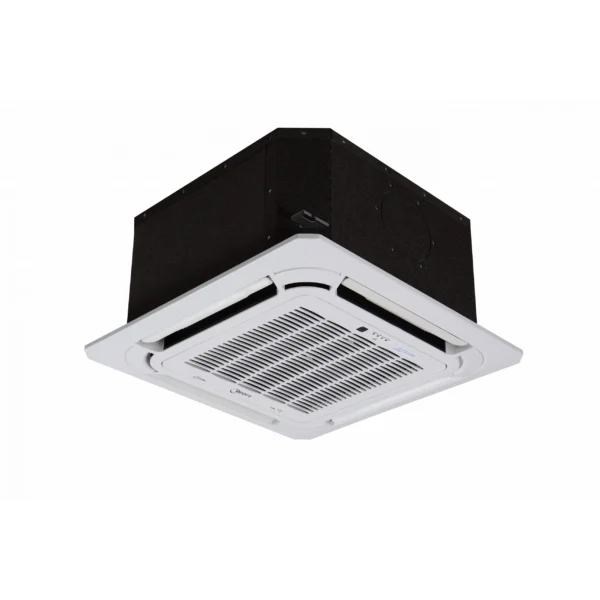

Midea Air Conditioner Ceiling Cassette MCA3U 12k Btu / h

Garanci 36 muaj

Fuqia

Gazi/Freoni

Klasi Energjitik

Kompresori

Siperfaqe

SKU: cassete-12 Kategori: ,

Përshkrim

Indoor Unit Code: MCA3U-12HRFNX-QRD0W (GA)
Outdoor Unit Code: MOX230-12HFN8-QRD0W (GA)

Operating Voltage V-Hz-Ph:

220V-240V, 1Ph, 50Hz

Operation Type:

Ψ / Θ

Nominal Yield Btu / h:

12000

Cooling Performance Btu / h:

12000 (2897-14020)

Cooling Efficiency kW:

3.52 (0.85-4.11)

Pershkrimi

Wi-Fi Ready

Through the smart application you can regulate the temperature and activate the air conditioner remotely, while at the same time you can control your charges, so that you can save energy intelligently.

Wired & Wireless Control

Compared to wireless, the wired controller can be mounted on the wall and is mainly used in commercial spaces making air conditioning control more convenient.

Built-in Condenser Pump

The pressure gauge of the pump is up to 750mm, which exceeds the drainage requirements even in difficult cases.



Anti-corrosion Frame

The entire frame of the outdoor unit is coated with multiple layers of anti-corrosion material for greater durability.

Board Protection

For greater protection of the board, it is coated with anti-corrosion material, which ensures a longer life cycle.

Golden Fin Outdoor Unit Heat Exchanger

The unique anti-corrosion gold coating on the finned surface of the heat exchanger, gives resistance to corrosive factors such as acid rain, salt (coastal areas) and other corrosive elements. In addition, it prevents the growth of bacteria by improving thermal efficiency.

AirShare Outlet

All cassette type units have a suitable adjustment hole for an additional air duct on the sides of the inner element. With this feature it is possible to air condition a nearby small space through a small air duct.

Tabela e Produkteve

Operating Voltage V-Hz-Ph

220V-240V, 1Ph, 50Hz

Operation Type

Ψ / Θ

Nominal Yield Btu / h

12000

Cooling Performance Btu / h

12000 (2897-14020)

Cooling Efficiency kW

3.52 (0.85-4.11)

Thermal Efficiency Btu / h

13000 (1604-14705)

Thermal Efficiency kW

3.81 (0.47-4.31)

Power Supply Cooling W

1010 (168-1434)

Power Supply Heating W

1019 (124-1376)

Seasonal Degree of Energy Efficiency (SEER) Cooling

6.6

Seasonal Rate of Performance (SCOP) Heating (Average)

4.1

Seasonal Rate of Performance (SCOP) Heating (Warm)

5.1

Cooling Energy Class

A ++

Heating Energy Class (Medium Zone)

A +

Heating Energy Class (Warm Zone)

A +++

Cooling Operating Current A

4.45 (1.32-6.31)

Operating Current Heating A

4.73 (1.04-6.07)

Air supply m³ / h (Y / M / H) Indoor

620/510/420

Indoor Unit Noise Level dB (A) (H / M / H / H)

41/36/33 / 25.5

Indoor Unit Sound Power dB (A)

57

Outdoor Unit Sound Power in dB (A)

62

Internal Temperature Operating Range (Cooling) ℃

16-32

Internal Temperature Operating Range (Heating) ℃

0-30

Outdoor Temperature Operating Range (Cooling) ℃

-15 ~ 50

Outdoor Temperature Operating Range (Heating) ℃

-15 ~ 24

Indoor Unit Dimensions (H x W x D) mm

570x570x260

Panel dimensions (H x W x D) mm

647x647x50

Outdoor Unit Dimensions (H x W x D) mm

765x303x555

Net Indoor Unit Weight Kg

16.3

Net Weight Panel (Kg)

2.5

Net Weight of Outdoor Unit Kg

26.6

Liquid / Gas Piping Diameter mm

6.35mm (1 / 4in) /9.52mm (3 / 8in)

Maximum Piping Length m

25

Maximum Altitude Difference m

10

Coolant

R32

Control

Remote control

Wi-Fi function

Optional
